DC Power Supply for Switchgear DC-DC-110/220 10-300A

★：110V/220V Dual Input DC Power Supply for Switchgear

★：Designed for harsh environments with high efficiency and IP42 protection. Customizable for LV/MV applications

INQUIRY

PRODUCTS

CONTACT US


Contact: home@dn-ups.com

Tel: 021 34553681

Phone: 18964032600, 18049827051

Add: No. 52 Xinjian East Road, Greenland S&T Island Plaza, Minhang District, Shanghai, China

★ Specialized in Electric Power Supplies · 20+ Years of Experience

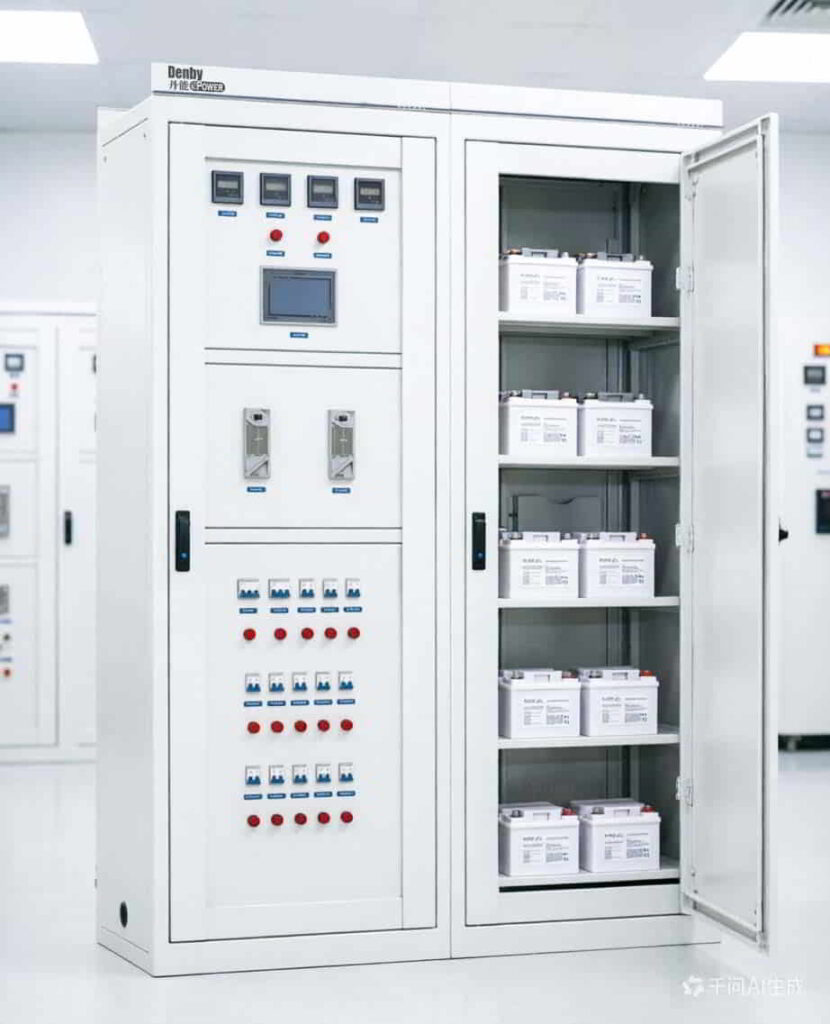

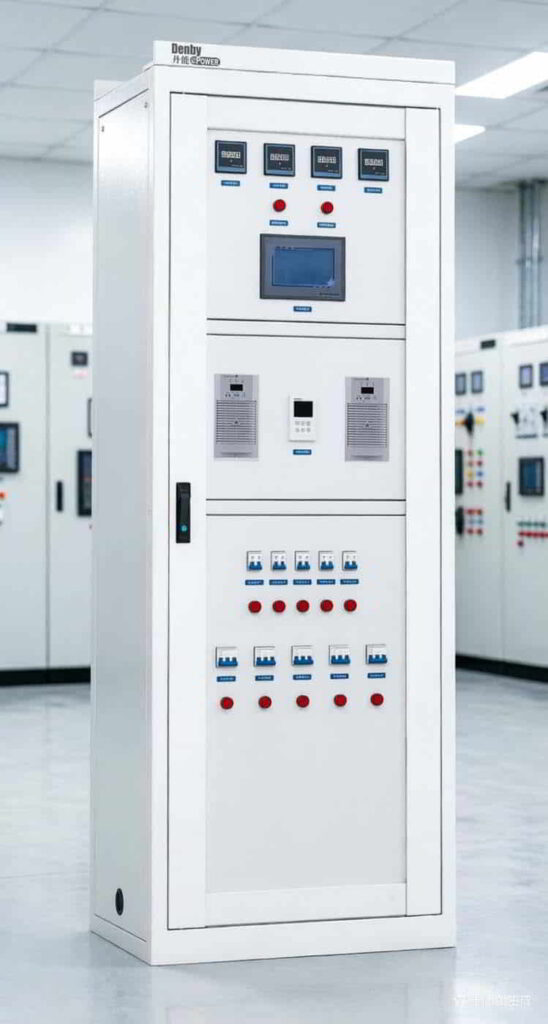

DenbyePower DC Power Supply System
The Stable Source for Power Control Circuits and Switchgear

Provides clean and stable DC power for 110VDC / 220VDC control circuits, covering substations of all voltage levels from 35kV to 500kV and industrial power distribution systems.

View Product Series →
Technical Specifications →

OUTPUT 220.4 VDC
CURRENT 42.7 A
BATTERY 83.2 %
CHARGING 5.3 A
STATUS ONLINE ✓
TEMP 36.8 ℃

Rectifier Output
85%
Battery Capacity
83%
SYSTEM NOMINAL · Normal Operation

20+
Years
Deeply Rooted in Power Supply Industry
110~220
VDC
Dual Voltage Level Coverage
99.9
%
System Operation Stability Rate
24/7
h
Round-the-Clock Technical Support

Product Series

Three Product Series · Full Scenario Coverage

From 35kV distribution substations to 500kV EHV converter stations, DenbyePower DC panels provide reliable DC power protection for various power and industrial scenarios.

⚡
110VDC
DN-DC110 Series

Specially designed for 110V control circuits, suitable for 35kV and below distribution substations and industrial power distribution rooms, providing stable DC operating power.

  • Output Voltage: 110VDC (Adjustable Range ±10%)
  • Rated Current: 20A / 30A / 50A
  • Battery Configuration: 18 Pcs × 12V Lead-Acid Battery Pack
  • Rectifier Module: Modular Hot-Swappable, Supports N+1 Configuration
  • HMI: Touch Screen Display, LED Status Indication
  • Installation: Standard Cabinet (2200×800×600mm)
⚡⚡
220VDC
DN-DC220 Series

The preferred choice for 220V control circuits, applied in substations of 110kV~500kV voltage levels and large industrial power distribution systems.

  • Output Voltage: 220VDC (Adjustable Range ±10%)
  • Rated Current: 50A / 100A / 200A / 300A
  • Battery Configuration: 104 Pcs × 2V Lead-Acid Battery Pack
  • Rectifier Module: Modular Hot-Swappable, N+1 Redundant Hot Backup
  • Communication Interface: RS485 / Ethernet Port (Optional)
  • Installation: Standard Cabinet (2200×800×600mm)
🔧
Customized
DC-POWER Custom Solutions

Customized according to special standards in power, petrochemical, rail transit and other industries, meeting differentiated technical requirements and harsh environment applications.

  • Voltage Level: 24VDC ~ 500VDC
  • Power Range: 1kW ~ 200kW
  • Executive Standard: GB/T 19826-2014
  • Moisture & Corrosion Protection: Optional IP54 / Salt Spray Grade
  • Delivery Time: 15~30 Working Days

Core Advantages

Six Core Advantages

Specially designed for harsh power environments, stability, reliability and intelligence are our core commitments.

01
Modular Rectification & Hot-Swappable
Rectifier modules support online hot-swapping replacement; single module failure does not affect system operation, and maintenance is carried out without power interruption.
02
Intelligent Battery Management System (BMS)
Real-time monitoring of voltage, temperature and internal resistance of each battery, intelligent equalized charging, and accurate early warning of faulty batteries.
03
Dual Input & Seamless Switching
Supports dual AC input of mains power + diesel generator; switches to battery power supply in milliseconds when mains power is interrupted.
04
Remote Monitoring & Cloud Platform
Connected to DenbyePower Cloud Monitoring Platform, check operation status and alarm information anytime via mobile/PC, support SMS/WeChat alarm push.
05
N+1 Redundant Design
Rectifier modules are configured in N+1 mode; the backup module automatically takes over the load in case of any module failure.
06
Wide Temperature Range & High Adaptability
Operating temperature range -25℃~+55℃, high humidity resistance (95% non-condensing), suitable for harsh environments such as outdoor cabinets and substations.

Applications

Typical Application Scenarios

DenbyePower DC panel systems operate stably in multiple key national fields including power, energy, transportation and industry.

⚡

Power Substations
35kV~500kV Substations
State Grid / China Southern Power Grid
🏭

Industrial Control Systems
Petrochemical, Steel, Cement
Automated Production Line Control Circuits
🚄

Rail Transit
Metro & High-Speed Rail Signal Power
Railway Communication Base Stations
🏢

Data Centers
IDC Rooms & Network Centers
Communication Base Station DC Distribution
🏥

Medical Facilities
Hospital Power Distribution Rooms
DC Power Supply for Large Medical Equipment
⚡

Power Plants & New Energy
Thermal/Hydro/PV Boosting Stations
DC Side of Energy Storage Systems
🎓

Research Institutes
Laboratory Precision Equipment
Power Supply for Test Platforms
🏛️

Government & Public Facilities
Government Data Centers
Airport & Port Power Protection

Communication Protocols

Standard Communication Protocols

Supports various industrial standard communication protocols, facilitating access to various power integrated automation systems.

📡

IEC 61850
Standard for Substation Communication Networks and Systems
🔌

Modbus RTU / TCP
General Industrial Protocol
🌐

SNMP
Standard Network Device Management Protocol
💬

IEC 104 Protocol
Power Telecontrol Supporting Protocol
📱

DenbyePower Cloud Protocol
DenbyePower Proprietary Cloud Monitoring Platform
🔄

Dry Contact Output
Conventional Alarm Relay Output

Specifications

Technical Parameters Overview

The following are reference parameters for conventional models, customization is available according to project requirements.

Model Output Voltage Rated Current Rectifier Module Configuration Battery Configuration Communication Mode Typical Application
DN-DC110-20 110VDC 20A 5A×4 (N+1 Hot Backup) 18 Pcs×12V/ 65Ah RS485 35kV Substation
DN-DC110-30 110VDC 30A 7.5A×4 (N+1 Hot Backup) 18 Pcs×12V/100Ah RS485 35kV Substation
DN-DC110-50 110VDC 50A 10A×5 (N+1 Hot Backup) 18 Pcs×12V/150Ah RS485+Ethernet 110kV Substation
DN-DC220-50 220VDC 50A 10A×5 (N+1 Hot Backup) 104 Pcs×2V/200Ah RS485+Ethernet 35kV/110kV Substation
DN-DC220-100 220VDC 100A 20A×5 (N+1 Hot Backup) 104 Pcs×2V/300Ah Ethernet+Dry Contact 110kV/220kV Substation
DN-DC220-150 220VDC 150A 30A×5 (N+1 Hot Backup) 104 Pcs×2V/400Ah Ethernet+IEC 104 Protocol 220kV Substation
DN-DC220-200 220VDC 200A 40A×5 (N+1 Hot Backup) 104 Pcs×2V/500Ah Ethernet+IEC 104 Protocol 500kV Converter Station
DN-DC220-300 220VDC 300A 60A×5 (N+1 Hot Backup) 104 Pcs×2V/800Ah Ethernet+IEC61850 500kV/UHV Substation
Parameter Note: Rectifier modules adopt N+1 redundant design; battery configuration is for conventional reference only, subject to project technical agreement. Executive Standard: GB/T 19826-2014.
